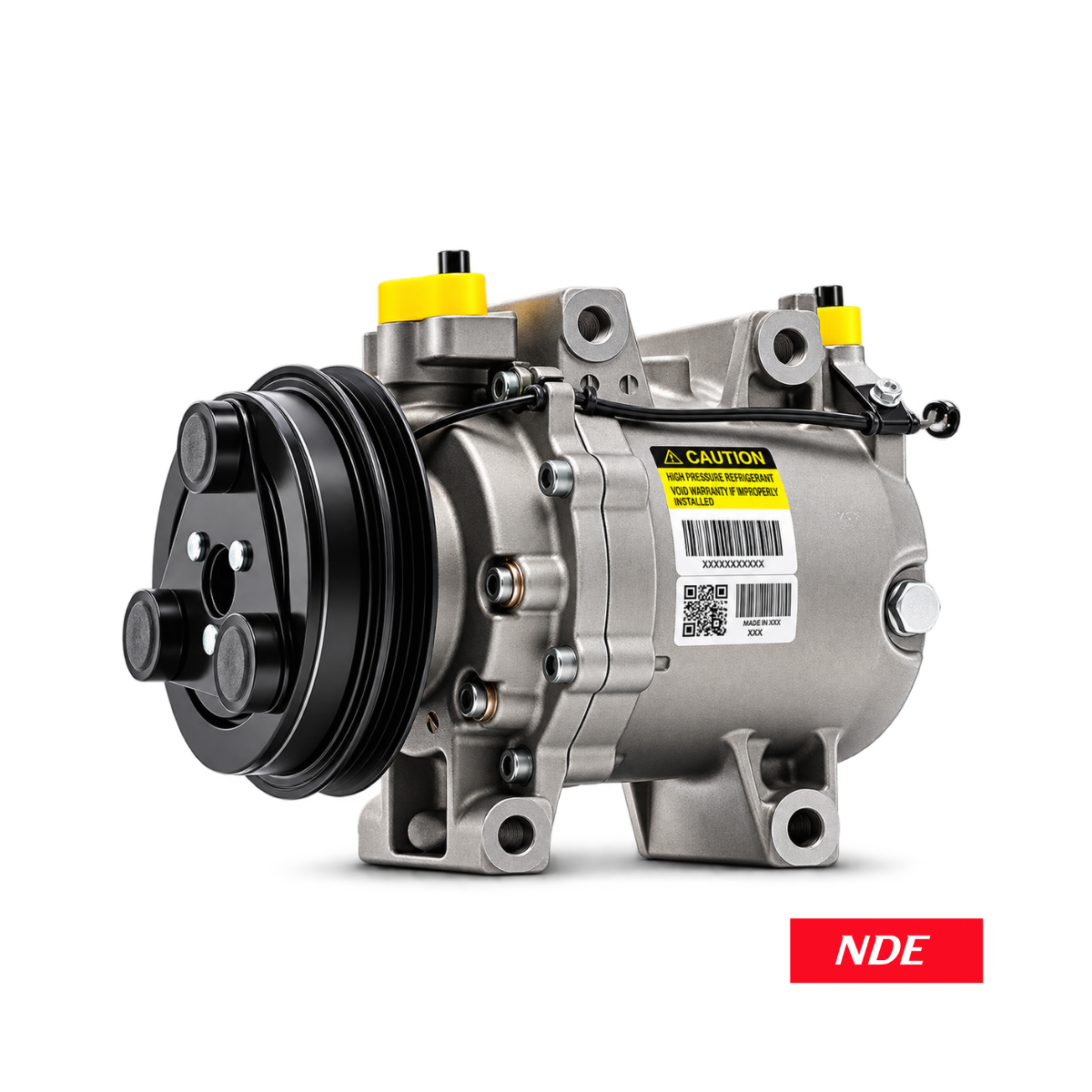

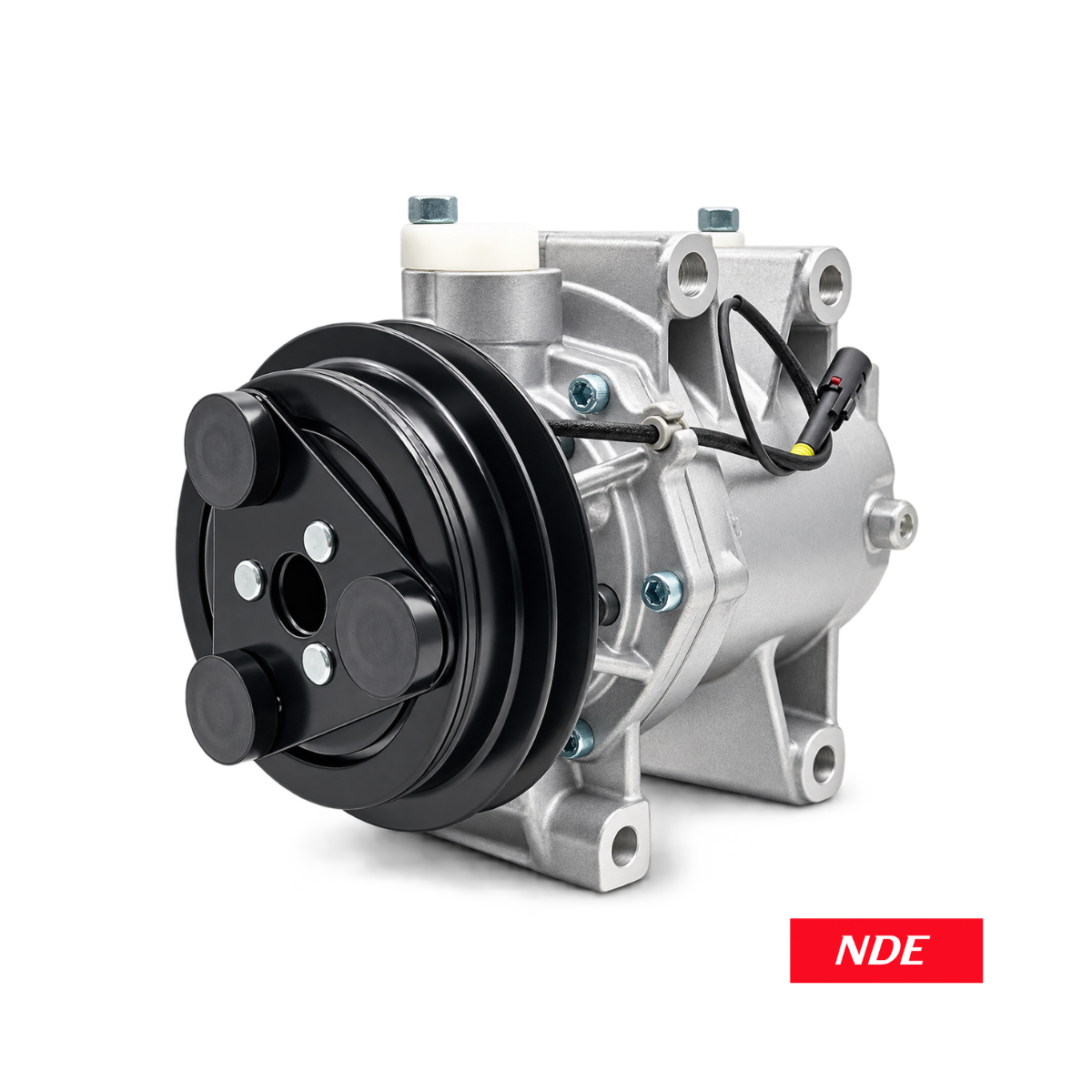

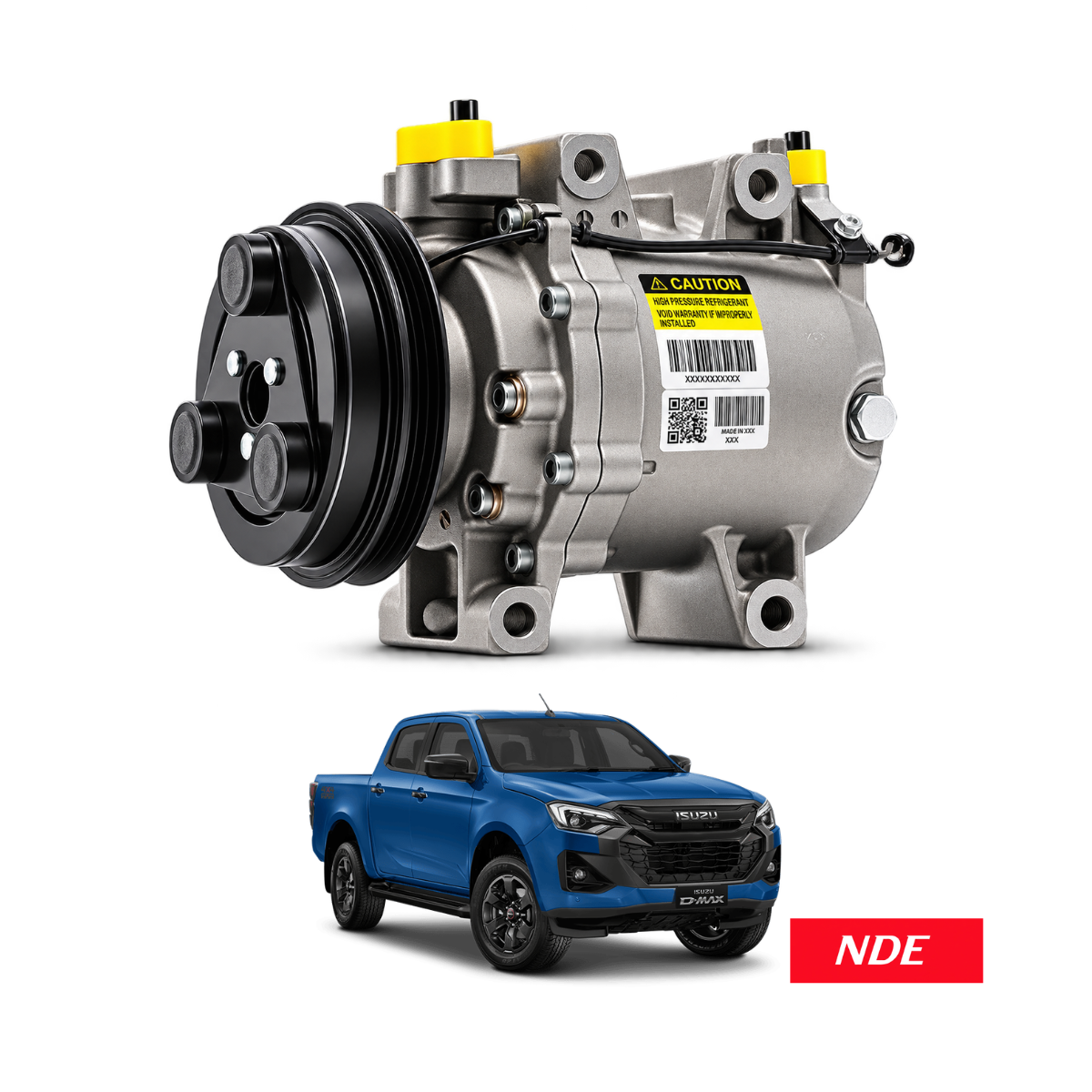

COMPRESSOR AC CALSONIC FOR ISUZU D-MAX

AC COMPRESSOR ASSY
Application: Isuzu D-Max
Aftermarket Auto Parts

Feature and Benefits:
• Supports compressor function in AC
• Moves refrigerant through AC system
• Designed for Isuzu D Max AC fitment
• Check chassis before compressor order
• Check ports and plugs before fitting
• Compare pulley alignment before fit
• Match plug type with AC harness
• Supports cool cabin air while driving
• Replace after complete AC diagnosis
• Careful fitting protects AC parts
• Use specified refrigerant oil charge
• Inspect AC lines for debris blockage
• Check belt tension before AC operation
• Secure mounting bolts to proper torque
• Restores consistent cabin AC cooling
• Supports steady cabin cooling daily
• Verify Calsonic part before ordering
• Confirm refrigerant before AC service
• Check dryer and condenser condition
• Test AC pressure after compressor fit

Product is CALSONIC KENSAI
Original - Authentic - Genuine

• Cooling method: Air cooled
• Compressor type: CR14
• Compressor mechanism: Reciprocating, crankshaft and connecting rod
• Displacement: 140 cc
• Additional displacement specification: >100 m²/m (as provided)
• Exhaust pressure: >1,000 gauge pressure (as provided)
• Rotation speed: 450–1,000 r/min
• Dimensions: 27.5 × 19.5 × 15 (unit not specified)
• Pulley grooves: 2PK
• Pulley diameter: 132 mm
• Recommended oil: PAG 46
• Operating voltage: 12 V
• OEM number: A201178A5000
• Cross-reference numbers: ELSTOCK 51-0880; ALANKO 551671

**Image is for illustration purpose only
**Price is for Single Piece Only
