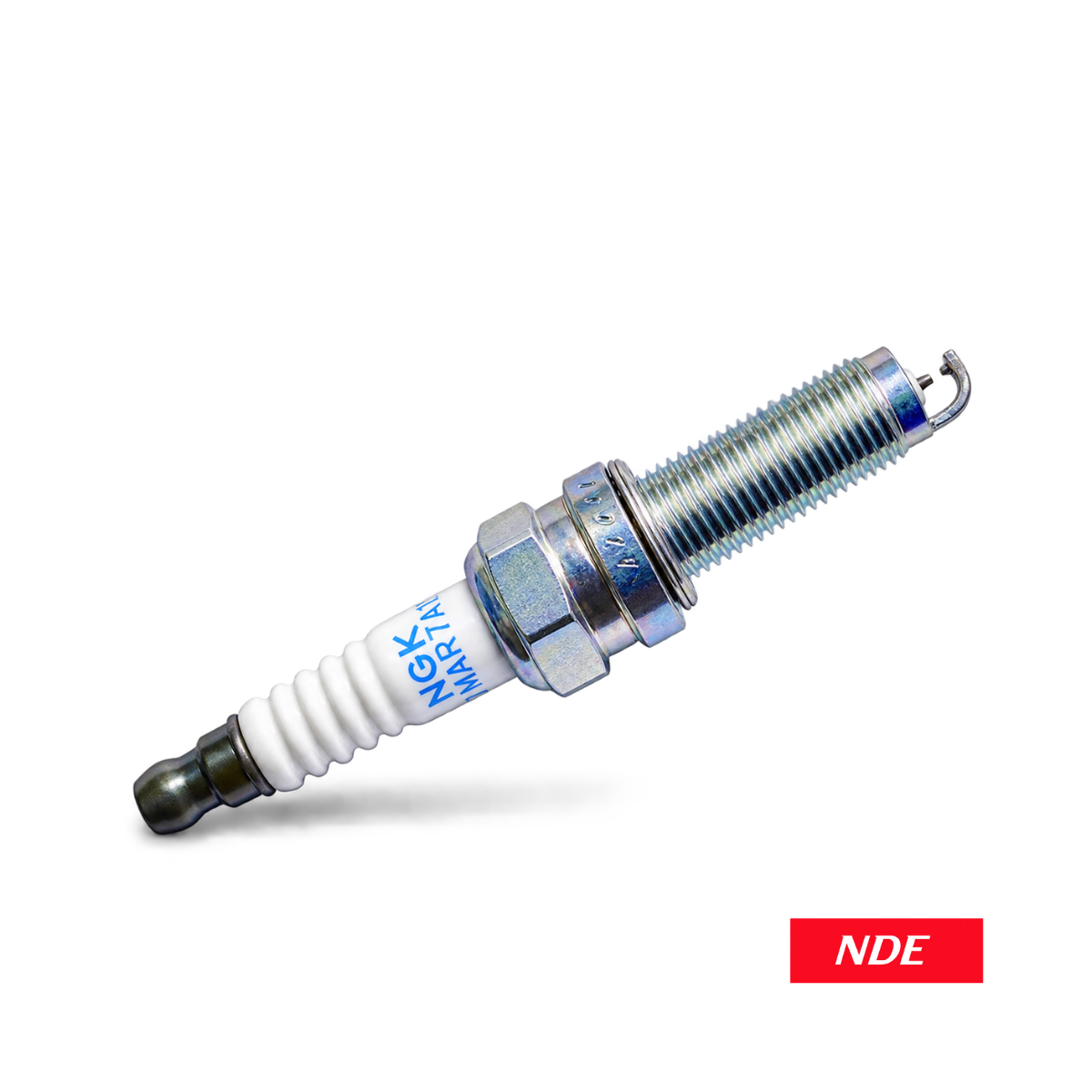

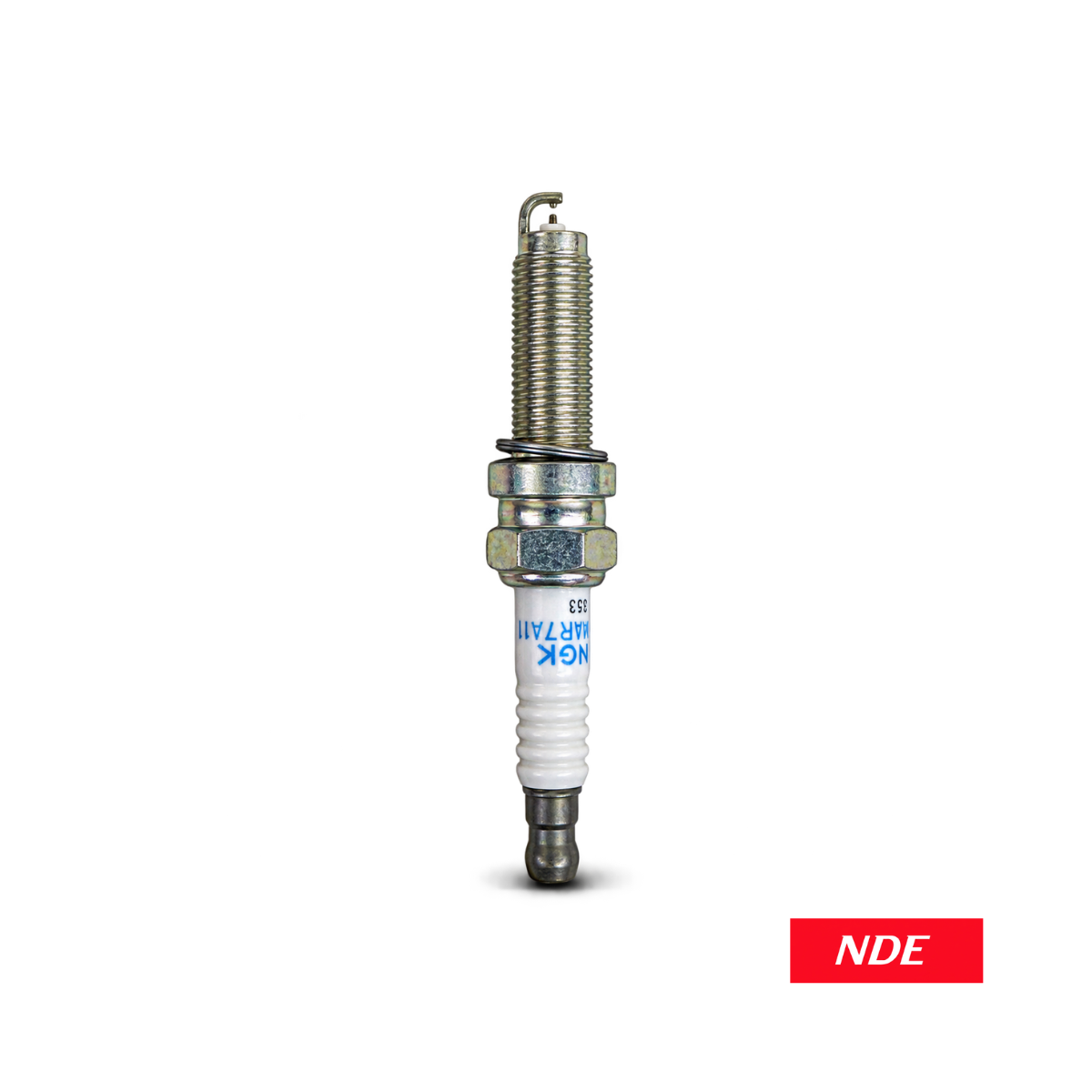

DILMAR7A11S SPARK PLUG NGK

LASER IRIDIUM SPARK PLUG
NGK Part No.: DILMAR7A11S
Honda Part No.: 12290-5YS-003
Original, Authentic & Genuine

Features & Benefit:
• OEM spark output boosts combustion
• Precision fit ensures stable spark
• Iridium tip boosts long life spark
• Enhances fuel efficiency and economy
• Smooth ignition ensures engine stability
• High ignition strength ensures output
• Cleaner burn reduces emission output
• Heat resistant build handles extremes
• Corrosion resistant ensures durability
• Advanced electrode boosts efficiency
• Supports modern engine performance
• Stable ignition under heavy load use
• Improves throttle response and power
• Reduces knocking improves performance
• Durable build resists wear erosion
• Optimized gap ensures steady spark
• Direct fit design enables easy install
• Meets strict OEM performance standards

Product is HONDA GENUINE
Orignal - Authentic - Genuine
Made in Japan

Verified Cross-References
NGK: DILMAR7A11S
NGK stock number: 96515
Honda genuine: 12290-5YS-003
Honda compact format: 122905YS003

1. Product specifications
NGK part number: DILMAR7A11S
NGK stock number: 96515
Honda genuine reference: 12290-5YS-003
Plug type: Laser Iridium hybrid
Thread diameter: 12 mm
Thread reach: 26.5 mm
Hex size: 16 mm
Spark gap: 1.1 mm
Heat range: 7
Construction: Iridium centre electrode with precious-metal ground electrodes
Ground design: Three-electrode long-reach design
Resistor: Built-in resistor type
Seat type: Gasket seat
Country of origin: Japan

The official NGK Japan catalogue identifies DILMAR7A11S as a 12 mm, 26.5 mm long-reach, 16 mm hex, double-precious-metal hybrid plug. NGK Japan

2. How to install
Allow the engine to cool and disconnect the ignition coils. Remove the old plugs, clean the plug wells and install the new plugs by hand to prevent cross-threading. Tighten them using a torque wrench according to the vehicle manufacturer’s specified torque. Reinstall the ignition coils and connectors. Professional installation is recommended.

3. Replacement indicators
Replacement may be required if the engine develops difficult starting, rough idling, hesitation, reduced acceleration, increased fuel consumption, engine vibration, misfiring or a check-engine warning. Worn electrodes, cracked insulators and excessive carbon or oil deposits also indicate replacement is necessary.

4. Advantages of genuine NGK plugs
Genuine NGK plugs provide the correct heat range, resistance, dimensions and electrode construction. They support reliable ignition, efficient combustion, consistent engine performance and longer service life. Counterfeit plugs may cause misfires, overheating, poor fuel economy and possible damage to ignition coils or the catalytic converter.

5. Why order from ndestore.com
ndestore.com provides application verification, specialist product support, genuine-product sourcing, secure nationwide delivery and assistance in confirming compatibility through the vehicle model, engine code or chassis number.

6. Product on Demand from Japan
Products unavailable locally can be sourced from Japan through the Parts on Demand service. The estimated import period is 10–15 days, subject to supplier availability, customs clearance and international transit. Advance payment and confirmed vehicle details are required before ordering.

*Price is for Single Piece
**Image is for illustration purpose only
**Product is Available ON-DEMAND only
**Delivery lead time is 5-10 working days
