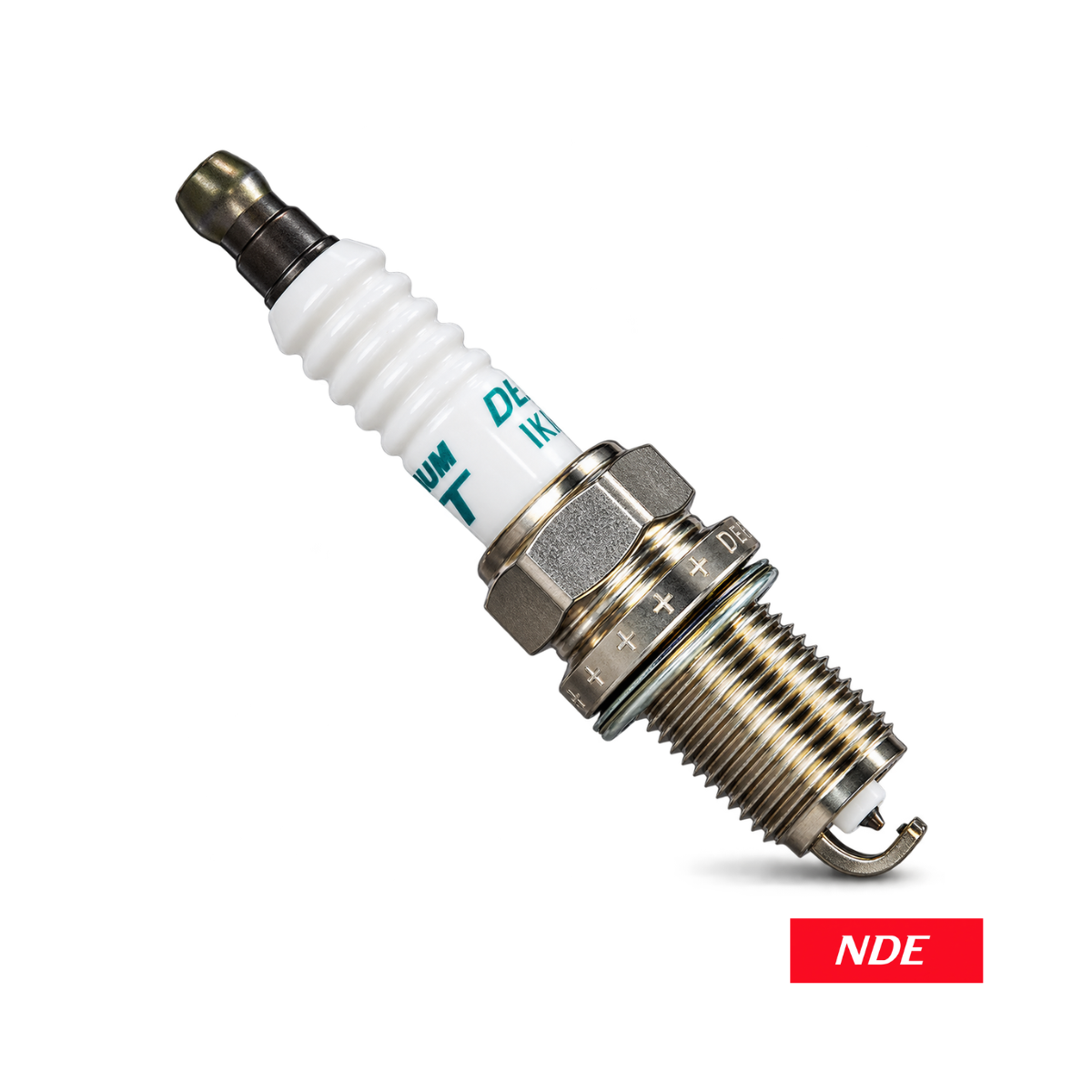

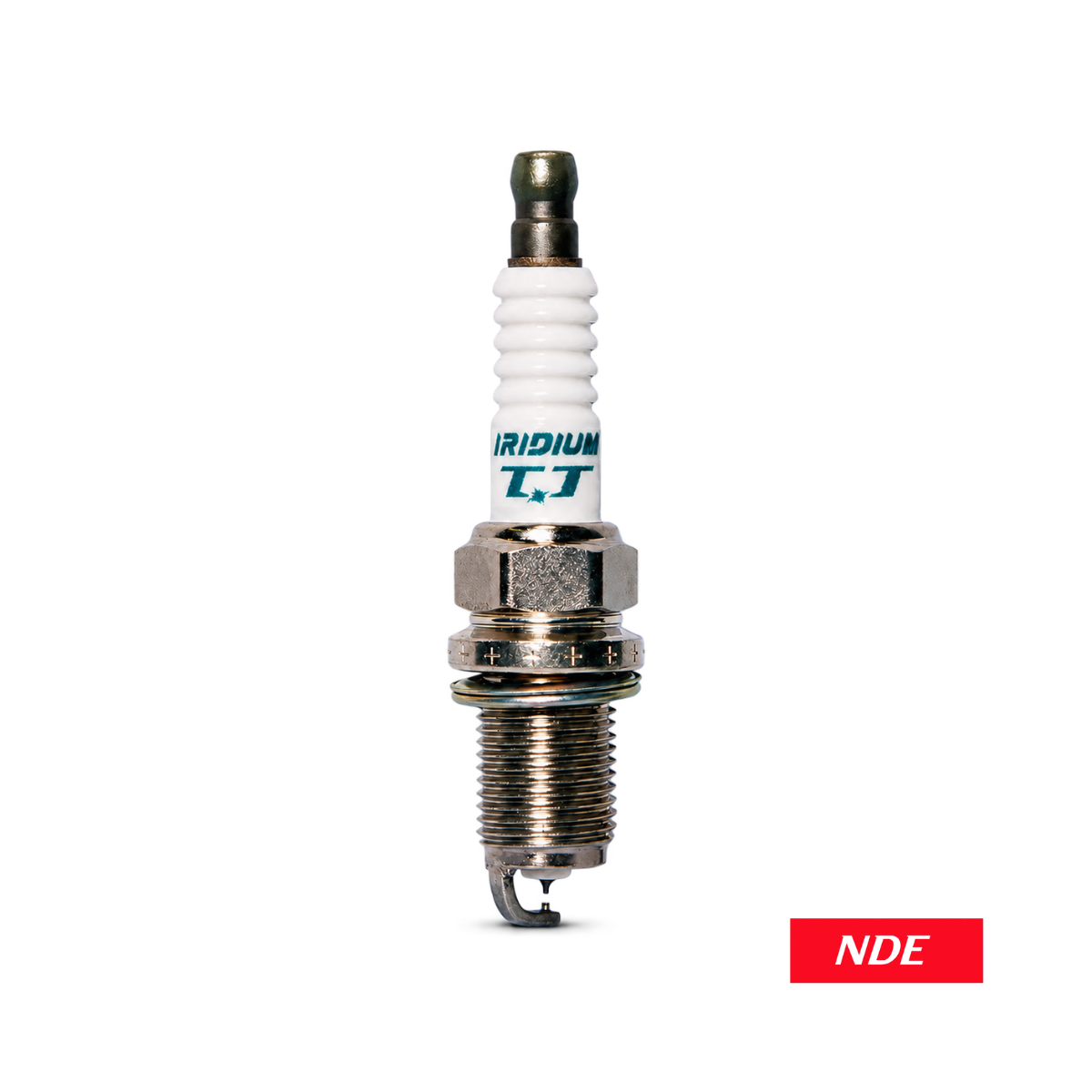

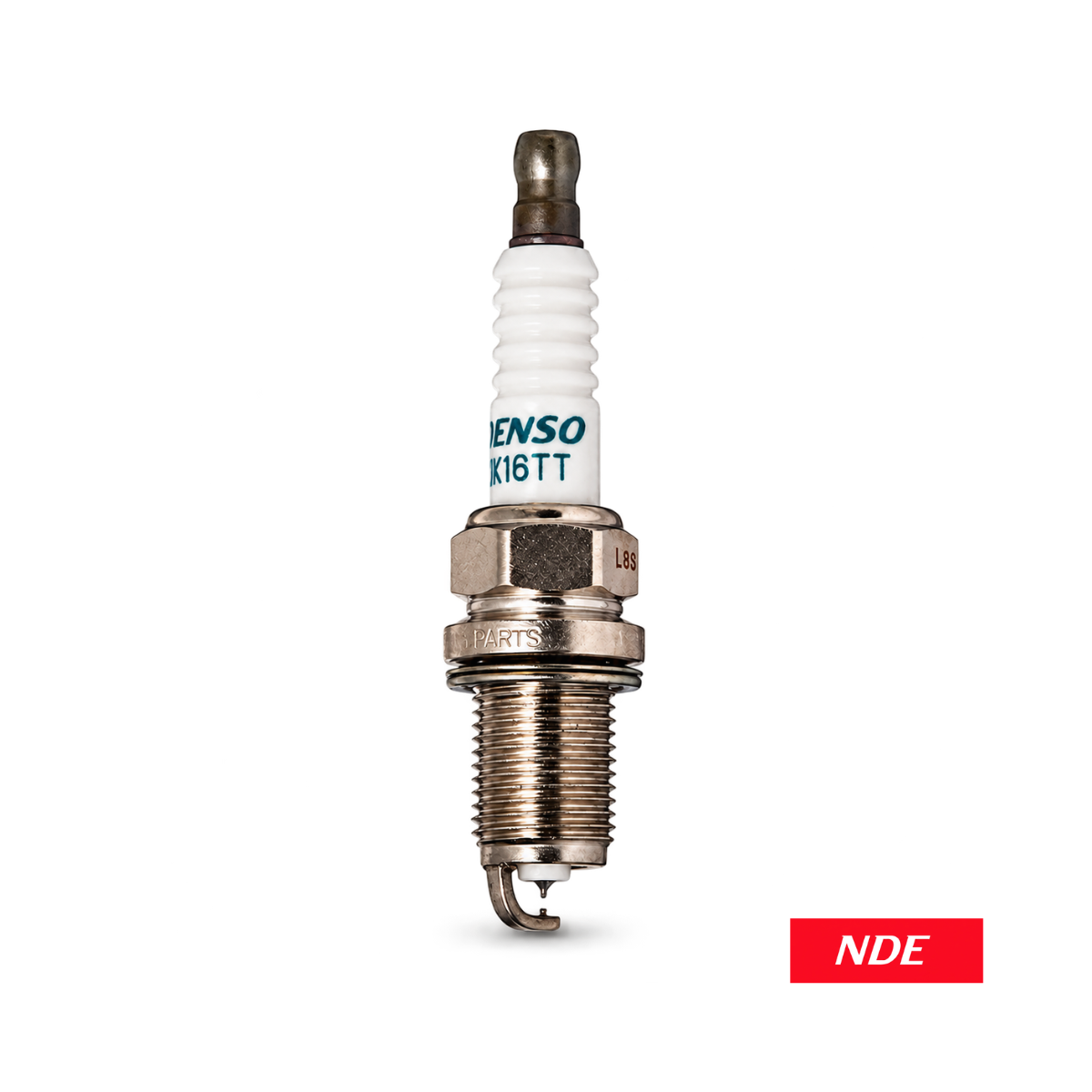

IK16TT SPARK PLUG DENSO

SPARK PLUG DENSO
Part No.: IK16TT

Feature and Benefits:
• Fine iridium center supports ignition
• Platinum ground improves operating durability
• Twin needle design improves spark access
• Precise 1.0mm gap supports combustion
• Reduced voltage supports easier starting
• Five kiloohm resistor limits interference
• Copper core supports heat transfer
• Compact hex supports easy installation
• Alumina insulator withstands high temperatures
• Ribbed insulation prevents voltage leakage
• Ceramic construction resists thermal stress
• Consistent sparking supports smooth operation
• Reliable ignition supports engine starting
• Stable combustion supports fuel economy
• Fine electrodes improve flame development
• Precious metals resist spark erosion
• Metal shell withstands combustion pressure
• Accurate dimensions ensure correct fitment
• Secure gasket maintains combustion sealing
• Denso TT design maintains performance


Product is DENSO JAPAN
Orignal - Authentic - Genuine

**Image is for illustration purpose only
**Price is for Single Piece Only

Denso Part Number: IK16TT
Denso Stock Number: 4701
Denso Product Number: 267700-8450
Denso Type Number: IT01
Product Series: Iridium TT
Product Specification: ISO Type
Thread Diameter: 14 mm
Thread Pitch: 1.25 mm
Thread Reach: 19 mm
Hex Size: 16 mm
Electrode Gap: 1.0 mm
Denso Heat Range: 16
Center Electrode: 0.4 mm Iridium Alloy
Ground Electrode: 0.7 mm Platinum Alloy
Firing-End Projection: 1.5 mm
Spark Position: 3 mm
Ground Electrode Height: 6.2 mm
Terminal Type: Solid Terminal
Resistor Value: 5 kΩ
Seat Type: Gasket Seat
Product Quality: Original and Authentic
Short Code: DNIKTT

Denso officially specifies IK16TT with a 0.4 mm iridium center electrode and 0.7 mm needle-type platinum ground electrode. Its dimensions include a 14 mm diameter, 19 mm reach, 16 mm hex and 1.0 mm gap. Official Denso Iridium TT specifications
